Introduction to

Reactive programming

in Spring framework

The problematics

Common model : latency can cause dramatical issues

Reactive applications

Reduce latency effects to improve stability and scalability

Reactive programming

Work with data streams in a asynchronous and non-blocking way.

A stream is a sequence of 0 to n items, which eventually completes or fails.

A reactive library/framework gives tools to create and manipulate streams in a functional style.

Reactive in Java

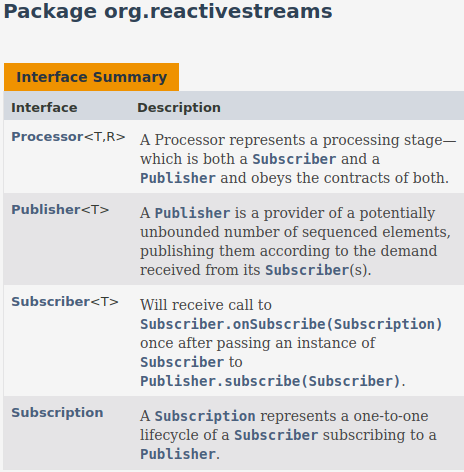

Reactive streams specification

Implementations

Reactor basics

Flux and Mono implement Publisher interface

• Mono : 0 to 1 item

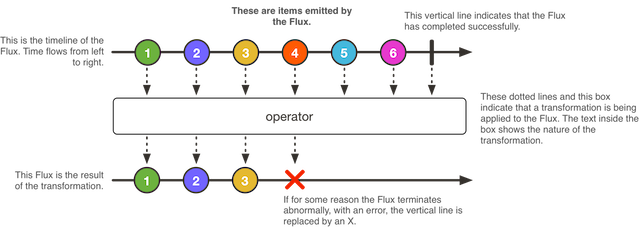

• Flux : 0 to n items

Let's play with Reactor

Flux
    .just("strings", "to", "test", "reactor", ".") // create Flux with static data
    .map(String::toUpperCase)                      // 1 to 1 transformation
    .flatMap(s -> Flux.fromArray(s.split("")))     // 1 to n transformation, can call an async service...
    .filter(s -> !"S".equals(s))
    .map(s -> {
        if (".".equals(s))
            throw new IllegalArgumentException("I don't want ending '.' .");
        return s;
    })
    .doOnError(e -> System.err.println("Error : " + e.toString()))
    .subscribe(s -> System.out.println(s))         // nothing happens if we don't subscribe
    ;


More operators and samples on the official doc!

Reactive Spring

• Support added in Spring 5 / Spring-Boot 2 releases
• Reactive support based on Reactor library
• Web support :
  • module : Spring WebFlux
  • server : Netty (default), Undertow, Servlet 3.1+ containers (non blocking IO)
  • client : WebClient is reactive alternative of RestTemplate

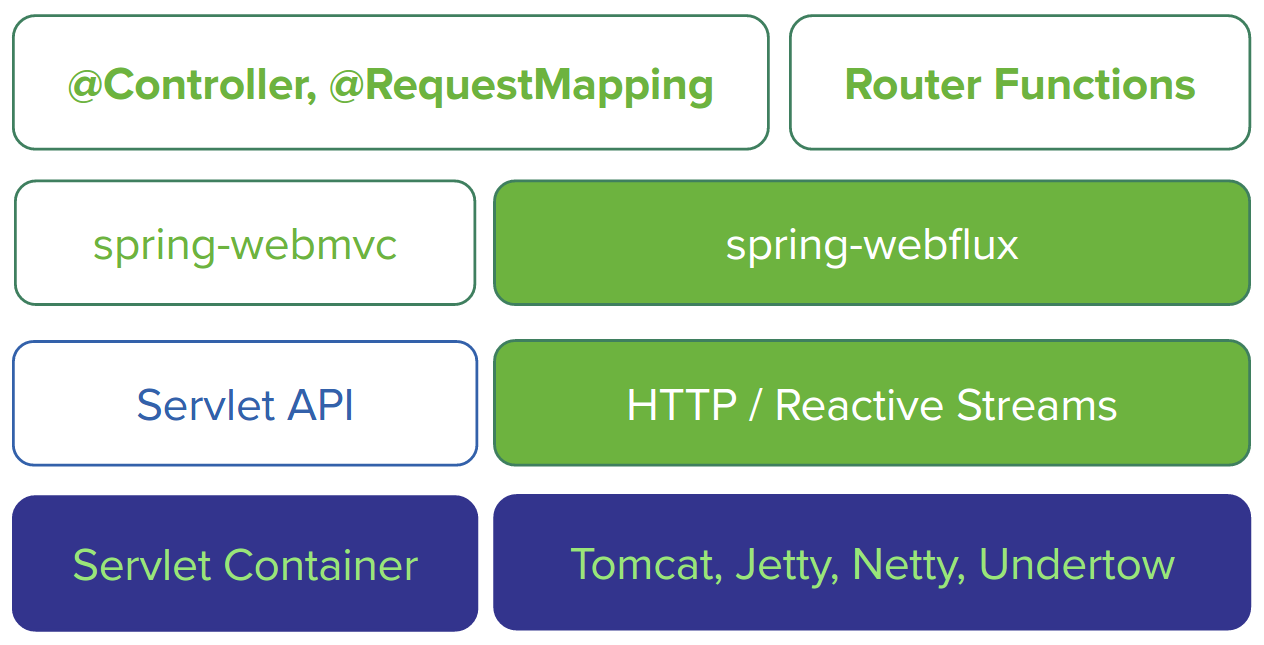

Spring Web-MVC vs WebFlux

Go - Init WebFlux project

(Can use Spring Initializr through https://start.spring.io or directly in IDE)

• Create your first functional router :

@Component
public class FunctionalStyleRouter {
    @Bean
    public RouterFunction<ServerResponse> route() {
        return RouterFunctions
                .route(RequestPredicates.GET("/index"),
                       request -> ServerResponse.ok().build());
    }
}


• Test :

curl http://localhost:8080/index

Router/Handler for REST API

The HandlerFunction takes an incoming ServerRequest, returns a Mono<ServerResponse>

UserHandler handler = [...]

RouterFunction<ServerResponse> route =
    route(GET("/users/{id}").and(accept(APPLICATION_JSON)), handler::getUser)
        .andRoute(GET("/users").and(accept(APPLICATION_JSON)), handler::listUsers)
        .andRoute(POST("/users"), handler::createUser);


go - Init model and handler

public class HousePrice {
    private String city;
    private Integer pricePerSquare;
    // getters/setters...


Create handler with fake data...

@Component
public class HousePriceHandler {
    public Mono<ServerResponse> getAll(ServerRequest request) {
        Flux<HousePrice> housePrices =
                Flux.just(
                        new HousePrice("Paris", 9000),
                        new HousePrice("London", 13000),
                        new HousePrice("Rio", 11000));
        return ok()
                .contentType(MediaType.APPLICATION_JSON)
                .body(housePrices, HousePrice.class);
    }


Create a router to expose your data...

@Bean
public RouterFunction<ServerResponse> route() {
    return RouterFunctions
            .route(GET("/houseprices"), handler::getAll);
}


... and test it!

curl http://localhost:8080/houseprices | jq
[
  {
    "city": "Paris",
    "pricePerSquare": 9000
  },
  {
    "city": "London",
    "pricePerSquare": 13000
  },
  ...
]


Blocking DB API vs Reactive

We have to use a non blocking API for our application to be reactive

Let's do it with mongoDB

• Start mongo on docker

  docker run --rm --name mongo -d -p 27017:27017 mongo

• Or you can use embedded mongo with dependency

  de.flapdoodle.embed:de.flapdoodle.embed.mongo

• Add reactive mongo support with artifact

  org.springframework.boot:spring-boot-starter-data-mongodb-reactive

• Add id for mongo persistence on model...


  @Id
  private ObjectId id;


• ...Create reactive mongo repository


  public interface [Model]Repository extends ReactiveMongoRepository<[Model], ObjectId> {
  }


• Use the repository in the handler instead of the mock
• Add data in the repository ! Can use CommandLineRunner for example...


  @Component
  public class DBFiller implements CommandLineRunner {
  @Override
  	public void run(String... args) throws Exception {
  		// do it here...
  	}
  }


• Test again!

Infinite streams

Create a new endpoint which delivers infinite stream :

• Method Flux.interval to create infinite flux
• Use media type application/stream+json
• Update randomly your data in repository to see changes
• Try it!

curl http://localhost:8080/streamhouseprices
{"city":"Paris","pricePerSquare":10420}
{"city":"Rio","pricePerSquare":11920}
{"city":"London","pricePerSquare":14170}
{"city":"Paris","pricePerSquare":10430}
{"city":"Rio","pricePerSquare":11930}
{"city":"London","pricePerSquare":14180}
{"city":"Paris","pricePerSquare":10440}
{"city":"Rio","pricePerSquare":11940}
{"city":"London","pricePerSquare":14190}
......


Webclient & Server-sent events

Create a new web client application. We will use Webclient to call our streaming service and render server-sent events.

To do this we use media type text/event-stream :

@Controller
public class HousePricesController {

	@GetMapping(value="/ssehouseprices", produces=MediaType.TEXT_EVENT_STREAM_VALUE)
	@ResponseBody
	public Flux<HousePrice> streamData() {
		return WebClient
				.create("http://localhost:8080")
				.get()
				.uri("/streamhouseprices")
				.retrieve()
				.bodyToFlux(HousePrice.class);
	}
}


SSE in browser

The server-sent events allow to refresh information in browser without making any new request.

<script type="text/javascript">
	var evtSource = new EventSource("/ssehouseprices");
	evtSource.onmessage = function(e) {
		housePrice = JSON.parse(e.data);
		// now we can use housePrice.pricePerSquare for example..
	}
</script>
